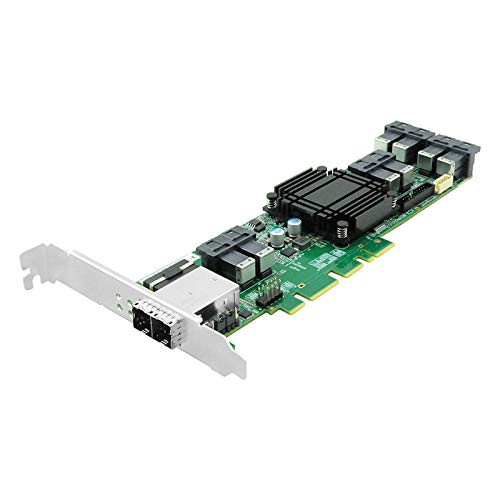

24-Port 12G SAS Expander Card for Servers & Storage Chassis | High-Speed Data Transfer | RAID Expansion | Server Rack & Data Center Use

LRSACX36 is developed on SAS35X36 of high performance that provide 12Gb/s SAS performance to the host when using 6Gb/s and 3Gb/s SATA end devices, making it ideal for high-capacity and other storage applications. The LRSACX36 is supported by an industry-leading Software Development Kit (SDK) and tool suite for easy integration, de-bug and troubleshooting. Functional Characteristics SAS PHY Power Conditions Partial and Slumber Power Management Wake-In-Band and Enter/Exit Chip Wide-Low Power modes Support SAS transfer rates of 12, 6, 3 Gb/s, SATA transfer rates of 6 and 3 Gb/s. Advantages Enable higher enclosure capacities through 36 PHY edge expansion Provide high device throughput with SAS and SATA support up to 12Gb/s, including wide port support Lowest power utilization expander and industry-leading SerDes for performance and robustness Applications The LRSACX36 expanders support scalability and the fault-tolerant path redundancy needed by today’s data centers, enterprise servers and storage subsystems. While connecting multiple targets and hosts in a switched SAS environment, the The LRSACX36 expanders improve system performance and reliability in feature-rich, power-efficient and industry-trusted offerings.
